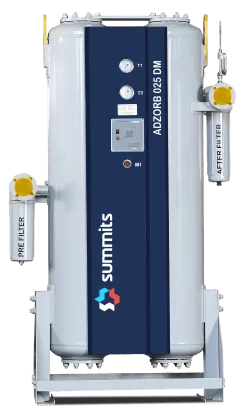

Heatless Air Dryers
Heatless Air Dryers – Dry Air & Smooth Operations
Every industry depends on compressed air, there is no doubt in that.
but moisture inside the line can stealthily damage systems & hamper productivity. Our heatless air dryers are created to put a stop to this.
Its advanced adsorption technology removes hidden water vapor to give you dry air and help keep your equipment safe. This is the best solution for clean compressed air.
Why Do You Need a Compressed Heatless Air Dryer?
Compressed air may look clean, but it often carries water vapor and oil particles.
This untreated air enters the distribution lines, the moisture cools and turns into liquid water.
You know what this can cause?
This leads to serious problems like:
- Rust and corrosion in pipelines
- Blockages and freeze-ups
- Damage to components
- Risk of product rejection and costly downtime
The answer is simple...Heatless Air Dryers - they help lower the dew point of the compressed air.
How Our Heatless Air Dryer Works?
The process starts with coalescing filters (5 micron and 0.01 micron) that remove bulk water and liquid oil from compressed air.

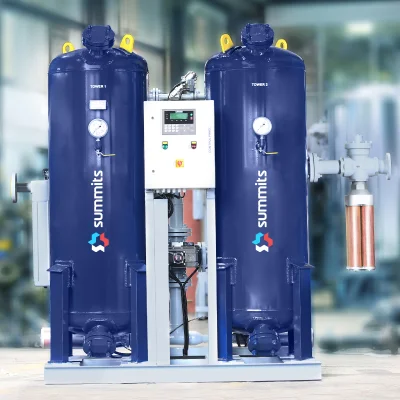

This pre-treated air then slowly goes into the adsorber tower (T1). Here it passes through a desiccant bed that traps moisture and gives out dry air.
After this, the dried air then flows through a 1-micron dust filter....this helps offer clean, dry compressed air for operations that are as smooth as butter.
But the desiccant can only hold a certain quantity of moisture. Therefore, it needs to be regenerated.
While T1 is drying, a portion of dry air from the second adsorber (T2) is expanded and redirected back to T1 - This purge air removes the stored moisture, preparing T1 for the next cycle.
Uniquely controlled valves & an automatic controller continuously keep this cycle going, helping offer a constant & smooth supply of dry, clean compressed air.
Features Of Our Heatless Air Dryers
| Class | Pressure Dew Point (°C) |
|---|---|
| Pleated Filter Media | Removes bulk moisture & oil, extends desiccant life. |
| Purge Economizer | It helps save energy by reducing purge air loss during load changes |
| No Air Loss Drain Valve | It also helps filter out contamination without wasting compressed air |
| Moisture Indicator | It also shows real-time moisture content. This greatly help with faster quality check |
| Dew Point Meter | The monitors outlet air quality 24/7. |
| Autovent System (AVS) | Stops untreated air from entering, ensuring only dry air supply. |
| Advanced PLC Control | Offers monitoring, alerts & Industry 4.0-ready communication protocols. |
| Oil Check Apparatus | Measures oil content in outlet air down to 0.1–0.2 mg/m³. |
| Differential Pressure Gauge | Indicates the right time to replace filters, avoiding downtime. |
Why Opt For Our Modern Heatless Air Dryers?
Choosing the right partner matters more than the product itself and that is why you should buy air dryer from us:
We create our compressors in such a robust way that they can serve different industries across continents.
We effectively control quality, timelines, as well as innovation. Result? - You get nothing but the best.
- We bring the scale of a global player with the attention of a trusted partner.
